BP Series LI (1:1) 650/1000/1200/1500/2200VA UPS

BP Series LI UPS is a high-performance power backup solution with a **compact design**, **advanced protection features**, and **multiple battery configurations** for versatile applications.

Key Features

• ✔ Compact size, Plug & Play
• ✔ Built-in AVR & Surge Suppressor
• ✔ Cold Start Function & Auto Restart
• ✔ Overload & Battery Drain Protection
• ✔ LED Status Indicator
• ✔ Quasi Sine Wave Output
• ✔ Inbuilt RS232 Port (BP1000 & above)
• ✔ Optional USB Port & Auto Shutdown Software

Battery Configuration

• 🔋 BP650: 1x12V (7Ah or 9Ah)
• 🔋 BP1000/1200: 2x12V (7Ah or 9Ah)
• 🔋 BP1500: 2x12V (9Ah)
• 🔋 BP2200: 24V (2x9Ah, 4x9Ah & Ext. Battery Option)

UPSX Series (1-3kVA) Online UPS

UPSX Series (1-3kVA) is designed for **high-efficiency power protection**, featuring **advanced MOSFET technology** and **wide input voltage range** for reliable backup solutions.

Key Features

• ✔ PWM Topology using MOSFET
• ✔ Wide Input AVR Range
• ✔ Overload & Short Circuit Protection
• ✔ Battery Deep Discharge Protection
• ✔ 10A (Standard) & 20A (Optional) Large Charging Ability
• ✔ Supports External Batteries for Extended Backup

Battery Configuration

• 🔋 UPSX1101L1: 12V/24V DC
• 🔋 UPSX1102L4: 24/36/48V DC
• 🔋 UPSX1103L4: 24/36/48V DC
• 🔋 UPSX1103L8: 72/96V DC

MP Series (1:1) 1-3kVA Online UPS

MP Series Online UPS is an **advanced power backup system** featuring **high efficiency, wide input range, and ECO mode for energy saving**. Designed with **double-conversion technology**, it ensures **stable power output** for critical applications.

Key Features

• ✔ Online Double-Conversion UPS
• ✔ Input Power Factor Corrected (≥0.99)
• ✔ Output Power Factor 0.9
• ✔ Wide Input Voltage (110Vac – 300Vac)
• ✔ ECO Mode for Energy Saving
• ✔ Efficiency up to 94% (Double Conversion)
• ✔ Emergency Power Off Function (EPO)

Battery Configuration (12V)

• 🔋 1kVA: 3 Nos. (2U)
• 🔋 2/3kVA: 8 Nos. (2U)

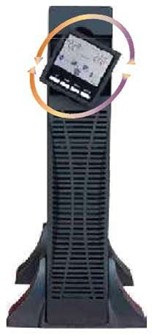

MPP Series (1:1) 4-10kVA Online UPS

MPP Series Online UPS is an advanced **high-capacity power backup system** with **double-conversion technology**, ensuring **stable and reliable power output** for critical applications.

Key Features

• ✔ Online Double-Conversion UPS
• ✔ Input Power Factor Corrected (≥0.99)
• ✔ Unity Output Power Factor (kVA = kW)
• ✔ Wide Input Voltage Range (110Vac – 300Vac)
• ✔ ECO Mode for Energy Saving
• ✔ Efficiency up to 94% (Double Conversion)
• ✔ Flexible Battery Configuration
• ✔ Adjustable Charging Current via LCD or Software (1A~6A)
• ✔ Emergency Power Off Function (EPO)

Battery Configuration (12V)

• 🔋 4kVA - 10kVA: 16-20 Nos. (3U)

MPP Series (3:3/3:1/1:1) 10-30kVA Online UPS

MPP Series (10-30kVA) Online UPS is a **high-capacity power backup solution** designed with **advanced IGBT technology**, **dual input design**, and **flexible phase configurations** for **mission-critical applications**.

Key Features

• ✔ 3-Level IGBT Rectifier & Inverter Topology
• ✔ 3U Rack and Tower Convertible
• ✔ 5-Inch Color Touchscreen Display
• ✔ Dual Input Design
• ✔ AC/AC Efficiency up to 96.5%
• ✔ Output Power Factor 1.0
• ✔ Supports Common Battery Bank
• ✔ Standard: RS232, USB, RS485, EPO, Dry Contact, Parallel Port
• ✔ Optional: SNMP Card, Wi-Fi Card, GPRS Card, SMS Alarms
• ✔ Paralleling Capability up to 4 Units
• ✔ Frequency Converter Mode
• ✔ Configurable as 3 Phase In / 1 Phase Out or 1 Phase In / 1 Phase Out

Battery Configuration

• 🔋 10-30kVA: 32-40 Nos. (Configurable)

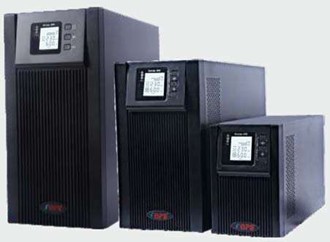

MF Series 1:1 (1-3kVA) Online UPS

MF Series Online UPS is a **high-efficiency, pure sine wave power backup system**, featuring **IGBT-based rectifier and inverter**, ensuring reliable power for critical applications.

Key Features

• ✔ True Online Double-Conversion PWM Technology
• ✔ IGBT-Based Rectifier & Inverter
• ✔ Pure Sine Wave Output
• ✔ Compatible with Isolation Transformer
• ✔ Crest Factor 3:1
• ✔ High Input Power Factor (≥0.99)
• ✔ Static Bypass & Cold Start
• ✔ Efficiency up to 94% (Double Conversion)
• ✔ Multiple Communication Options: SNMP, USB & RS232

Battery Configuration

• 🔋 MF1101L3 – 3 Nos.
• 🔋 MF1101L4 – 4 Nos.
• 🔋 MF1102L4 – 4 Nos.
• 🔋 MF1103L6 – 6 Nos.
• 🔋 MF1103L8 – 8 Nos.

MFP Series 1:1 (5-6kVA) Online UPS

MFP Series Online UPS is a **high-performance, double-conversion power backup system**, designed for **mission-critical applications** with **high efficiency and flexible battery configurations**.

Key Features

• ✔ True Online Double-Conversion PWM Technology
• ✔ High Input Power Factor (≥0.99)
• ✔ Unity Output PF (kVA = kW)
• ✔ Static Bypass & Cold Start
• ✔ Compatible with Isolation Transformer
• ✔ ECO Mode Operation for Energy Efficiency
• ✔ Flexible DC Link Voltage (192‐240V DC), Optional (120‐240V DC)
• ✔ Up to 4 Units Can Be Paralleled
• ✔ Online Double-Conversion Efficiency up to 94%
• ✔ Multiple Communication Options: SNMP, USB, RS232, Modbus & PFC

Battery Configuration

• 🔋 MFP1105L16: 16‐20 Nos.
• 🔋 MFP1106L16: 16‐20 Nos.

MFII Series 1:1 (10kVA/kW) Online UPS

MFII Series Online UPS is a **high-performance, true online double-conversion power backup system**, designed for **high efficiency and compatibility with isolation transformers**.

Key Features

• ✔ True Online Double-Conversion PWM Technology
• ✔ 10kVA in 1:1 Configuration
• ✔ kVA = kW (Unity Power Factor)
• ✔ High Input Power Factor (≥0.99)
• ✔ Input THDi < 3%
• ✔ Static Bypass & Cold Start
• ✔ Efficiency up to 94% (Double Conversion)
• ✔ Compatible with Isolation Transformer
• ✔ ECO Mode Operation for Energy Saving
• ✔ Inbuilt Paralleling: Up to 4 Units
• ✔ Multiple Communication Options: SNMP, USB, RS232, Modbus, PFC
• ✔ Supports Common Battery Bank

Battery Configuration

• 🔋 MFII1110L16: 16‐20 Nos. (Standard)
• 🔋 MFII1110L16: 32‐40 Nos. (Optional)

PB Series 1:1 (5-15kVA) Online UPS

PB Series Online UPS is a **true online double-conversion UPS** with an **inbuilt isolation transformer** for **enhanced reliability and performance**.

Key Features

• ✔ True Online Double-Conversion UPS
• ✔ Inbuilt Output Isolation Transformer
• ✔ Wide Input Voltage Range (160‐280V AC)
• ✔ User-Friendly Digital LCD Display
• ✔ Cold Start Function
• ✔ SNMP/RS232 Communication Interface (Optional)

Battery Configuration

• 🔋 5/6kVA: 10/16 Nos.
• 🔋 10/15kVA: 16 Nos.

Charging Current

🔋 10A Standard

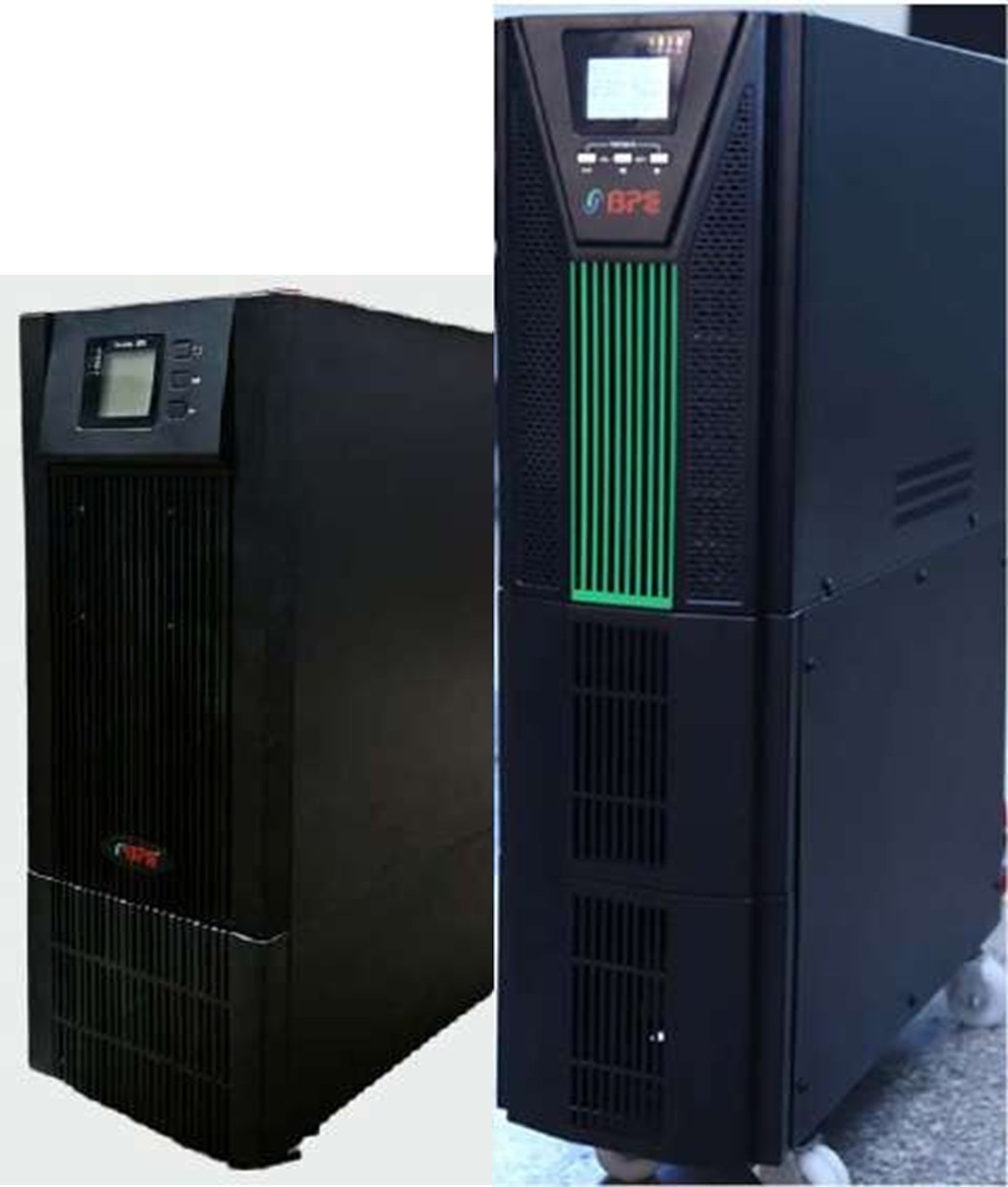

MFX Series 1:1 (1-3kVA) & MFPX Series 1:1 (5-6kVA) Online UPS

MFX & MFPX Series Online UPS are **true online double-conversion UPS systems** designed for **high efficiency, reliable power backup, and flexible battery configurations**.

Key Features

• ✔ True Online Double-Conversion PWM Technology
• ✔ High Input Power Factor (≥0.99)
• ✔ Static Bypass & Cold Start
• ✔ Inbuilt Transformer
• ✔ ECO Mode Operation
• ✔ Flexible Battery Configuration (16‐20pcs for Above 3kVA)
• ✔ Online Double-Conversion Efficiency up to 94%
• ✔ Multiple Communication Options: SNMP, USB, RS232, Modbus, PFC

Battery Configuration

• 🔋 1kVA: 3 Nos.
• 🔋 2kVA: 4 Nos.
• 🔋 3kVA: 6/8 Nos.
• 🔋 5/6kVA: 16/18/20 Nos.

MFII Series 3:1 (10kVA/kW) Online UPS

MFII Series 3:1 Online UPS is a **high-performance, true online double-conversion power backup system**, featuring **unity power factor (kVA = kW)** and **configurable 3:1 or 1:1 mode** for enhanced flexibility.

Key Features

• ✔ True Online Double-Conversion PWM Technology
• ✔ 10kVA in 3:1 Configuration (Can be Configured as 1:1)
• ✔ kVA = kW (Unity Power Factor)
• ✔ High Input Power Factor (≥0.99)
• ✔ Input THDi < 3%
• ✔ Static Bypass & Cold Start
• ✔ Efficiency up to 94% (Double Conversion)
• ✔ Compatible with Isolation Transformer
• ✔ ECO Mode Operation for Energy Saving
• ✔ Inbuilt Paralleling: Up to 4 Units
• ✔ Multiple Communication Options: SNMP, USB, RS232, Modbus, PFC
• ✔ Supports Common Battery Bank

Battery Configuration

• 🔋 MFII3110L16: 16‐20 Nos. (Standard)
• 🔋 MFII3110L16: 32‐40 Nos. (Optional)

MFPII Series 3:1 (15-20kVA) Online UPS

MFPII Series 3:1 Online UPS is a **high-capacity, true online double-conversion power backup system**, featuring **a 5-inch color touchscreen display**, **unity power factor (kVA = kW)**, and **configurable 3:1 or 1:1 mode** for maximum flexibility.

Key Features

• ✔ True Online Double-Conversion PWM Technology
• ✔ 15 & 20kVA in 3:1 Configuration (Can be Configured as 1:1)
• ✔ kVA = kW (Unity Power Factor)
• ✔ High Input Power Factor (≥0.99)
• ✔ Input iTHD < 3%
• ✔ Static Bypass & Cold Start
• ✔ Efficiency up to 94% (Double Conversion)
• ✔ Compatible with Isolation Transformer
• ✔ ECO Mode Operation for Energy Saving
• ✔ Inbuilt Paralleling: Up to 4 Units
• ✔ 5-Inch Color Touchscreen Display
• ✔ Multiple Communication Options: SNMP, USB, RS232, Modbus, PFC
• ✔ Supports Common Battery Bank

Battery Configuration

• 🔋 MFPII (15 & 20kVA): 16‐20 Nos. (Standard)
• 🔋 MFPII (15 & 20kVA): 32‐50 Nos. (Optional)

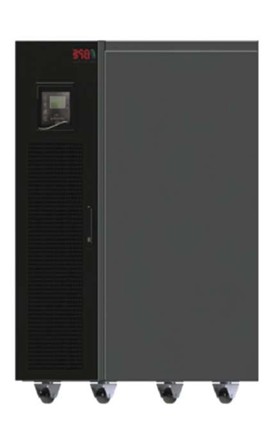

DSII Series 3:1 (10-30kVA) Online UPS

DSII Series 3:1 Online UPS is a **true on-line double-conversion UPS** with **inbuilt isolation transformer**, ensuring **high efficiency and wide input voltage compatibility**.

Key Features

• ✔ True On-Line Double-Conversion PWM Topology
• ✔ Up to 4 Units Can Be Paralleled (Inbuilt Paralleling)
• ✔ Inbuilt Isolation Transformer
• ✔ Static Bypass & Cold Start
• ✔ Wide Input Voltage Range: 208~480V AC
• ✔ Multiple Communication Options: SNMP, USB, RS232, Modbus, PFC

Battery Configuration

• 🔋 10-20kVA: 16 Nos.
• 🔋 30kVA: 20 Nos.

DSII Series 3:1 (10-30kVA) Online UPS

DSII Series 3:1 Online UPS is a **true on-line double-conversion UPS** with **inbuilt isolation transformer**, ensuring **high efficiency and wide input voltage compatibility**.

Key Features

• ✔ True On-Line Double-Conversion PWM Topology
• ✔ Up to 4 Units Can Be Paralleled (Inbuilt Paralleling)
• ✔ Inbuilt Isolation Transformer
• ✔ Static Bypass & Cold Start
• ✔ Wide Input Voltage Range: 208~480V AC
• ✔ Multiple Communication Options: SNMP, USB, RS232, Modbus, PFC

Battery Configuration

• 🔋 10-20kVA: 16 Nos.
• 🔋 30kVA: 20 Nos.

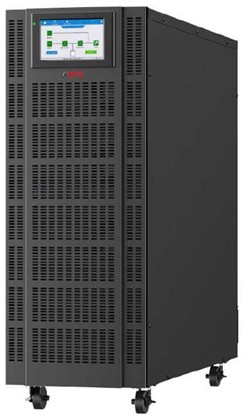

TA Series (3:3) 10-30kVA Online UPS

TA Series (3:3) Online UPS is a **high-performance power backup system** featuring **3-Level IGBT Rectifier & Inverter Topology** for **superior efficiency and reliability**.

Key Features

• ✔ True Online 3-Level IGBT Rectifier & Inverter Topology
• ✔ Unity Output Power Factor (kVA = kW)
• ✔ Input THDi < 3%
• ✔ Emergency Power OFF (EPO)
• ✔ Multiple Communication: SNMP, USB, RS232
• ✔ Colour Touch Screen Display
• ✔ 3:3 Phase Configuration (Can Be Configured as 3:1 or 1:1)
• ✔ Online Double-Conversion Efficiency up to 95%

Battery Configuration

• 🔋 10/20/30kVA: 32‐40 Nos. (Configurable)

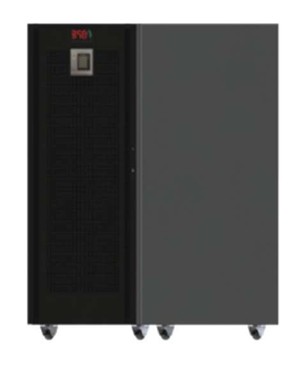

GTM Series (3:3) 30-90kVA Online UPS

GTM Series (3:3) Online UPS is a **high-performance, modular UPS system** with **true online double conversion topology**, providing **scalability, reliability, and efficiency**.

Key Features

• ✔ True On-Line Double-Conversion Topology
• ✔ Available Ratings: 30-90kVA
• ✔ Modular UPS Configuration (Module Capacity: 30kVA)
• ✔ ECO Mode Operation for Energy Saving
• ✔ Input Power Factor (PF) ≥ 0.99
• ✔ Online Efficiency up to 95%, ECO Mode Efficiency up to 99%
• ✔ Common or Separate Battery Bank Configurable
• ✔ Paralleling up to 4 Units
• ✔ Multiple Communication Options: SNMP, RS232, Modbus, PFC

Battery Configuration

• 🔋 30/60/90kVA: 32‐40 Nos.

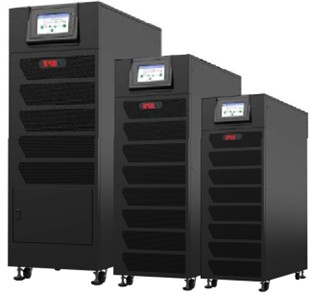

GTP Series (3:3) 10-250kVA Online UPS

GTP Series (3:3) Online UPS is a **high-capacity, industrial-grade UPS system** featuring **3-Level IGBT Rectifier & Inverter Topology** with **advanced efficiency and power management**.

Key Features

• ✔ True Online 3-Level IGBT Rectifier & Inverter Topology
• ✔ 0.9 Output Power Factor for 10‐30kVA
• ✔ Unity Output Power Factor for 40‐250kVA (kVA = kW)
• ✔ Online Efficiency of 96.5%
• ✔ ECO Mode Operation for Energy Saving, Efficiency > 99%
• ✔ Emergency Power OFF (EPO)
• ✔ Multiple Communication: SNMP, USB, RS232
• ✔ Input Phase Sequence Correction & Power from Mains Without Utilizing Battery
• ✔ Parallel Operation up to 4 Units
• ✔ 7-Inch Colour Touch Screen Display

Battery Configuration

• 🔋 10/20/30kVA: 16‐20 Nos. (Standard) & 30‐50 Nos. (Optional)
• 🔋 40‐250kVA: 30‐50 Nos. (Configurable)

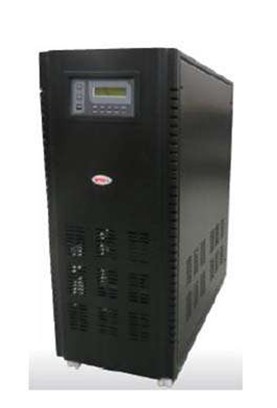

CP Series (3:3) 5-30kVA Online UPS

CP Series (3:3) Online UPS is a **high-efficiency, true online double-conversion UPS** designed with an **inbuilt isolation transformer** and **IGBT-based charger** for **enhanced power stability**.

Key Features

• ✔ Available Ratings: 5, 10, 15, 20 & 30kVA
• ✔ True On-Line Double Conversion Design
• ✔ Inbuilt Isolation Transformer at Output
• ✔ IGBT-Based Charger with Improved Input PF > 0.9
• ✔ High Charger Capacity for Long Backup (2-10 hrs.)
• ✔ Front LCD Display for Easy Monitoring
• ✔ Charging Current: 1-10A (Standard) & 20A (Optional)

Battery Configuration

• 🔋 5kVA: 16 Batteries
• 🔋 10‐20kVA: 16/20 Batteries
• 🔋 20/25/30kVA: 30 Batteries

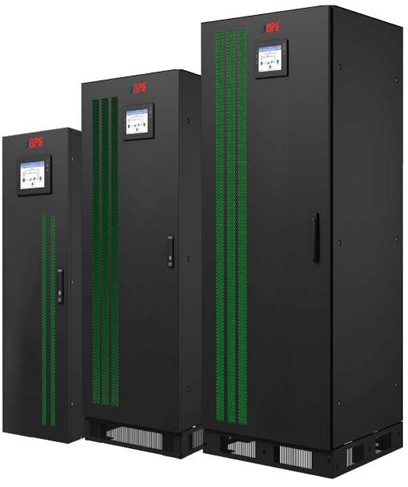

EPX+ Series (3:3) 10-160kVA / 200-300-400KVA Online UPS

EPX+ Series (3:3) Online UPS is the **most rugged and reliable UPS system**, designed for **all types of loads** with **high efficiency and advanced DSP control**.

Key Features

• ✔ Most Suitable for All Kinds of Load
• ✔ Advanced DSP Control / IGBT Charger (Optional)
• ✔ Inbuilt Isolation Transformer
• ✔ High Output Power Factor (0.9)
• ✔ Efficiency > 94%, ECO Mode 99%
• ✔ N+X Parallel Redundancy (Up to 6 Units)
• ✔ High MTBF (> 200,000 hrs.)
• ✔ Intelligent Self-Diagnosing Function
• ✔ 7” Colour Touch Screen Display
• ✔ Multiple Communication: SNMP, RS232, Modbus

Battery Configuration

• 🔋 10‐160kVA: 30‐34 Nos. (Configurable)
• 🔋 More than 5000 Units Deployed in the Field

UGX Series (3:3) 10-250kVA Online UPS

UGX Series (3:3) Online UPS is a **high-performance power backup system** featuring **3-Level IGBT Topology** with **built-in transformer** for superior efficiency and reliability.

Key Features

• ✔ Online Double Conversion 3‐Level IGBT Topology
• ✔ Built‐in Transformer
• ✔ Output Power Factor 1.0 (Rating >30kVA)
• ✔ Low Input THDi < 3%
• ✔ Efficiency > 95%, ECO Mode Efficiency up to 99.0%
• ✔ Emergency Power OFF (EPO)
• ✔ Input Phase Sequence Reversal Protection
• ✔ Power from Mains Without Going to Battery Mode
• ✔ Multiple Communication: SNMP, RS232, RS485
• ✔ Parallel Operation up to 4 Units
• ✔ User-Friendly LCD Display

Battery Configuration

• 🔋 10‐30kVA: 16‐20 Pcs (Optional 30‐50 Nos.)
• 🔋 40‐250kVA: 30‐50 Nos.

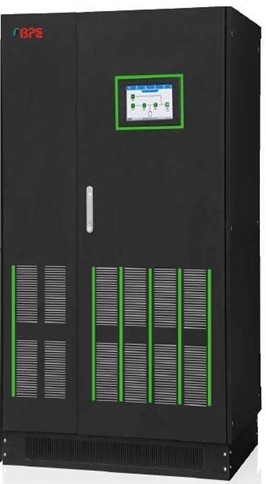

GTX Series (3:3) 120-400-500kVA Online UPS

GTX Series (3:3) Online UPS is a **high-capacity power backup system**, featuring **3-Level IGBT Rectifier & Inverter Topology** with **galvanic isolation transformer** for **unmatched efficiency and reliability**.

Key Features

• ✔ True Online 3-Level IGBT Rectifier & Inverter Topology
• ✔ Available Ratings: 120/160/200/250/300/400/500kVA
• ✔ Inbuilt Galvanic Isolation Transformer
• ✔ Input Power Factor ≥ 0.99
• ✔ High Efficiency up to 95.7%
• ✔ Input Phase Sequence Reversal Protection
• ✔ Power from Mains Without Going to Battery Mode
• ✔ Output Power Factor 0.9
• ✔ Low Input THDi ≤ 3%
• ✔ Emergency Power OFF (EPO)
• ✔ High MTBF (> 200,000 Hrs) and Low MTTR
• ✔ Multiple Communication: SNMP, USB, RS232
• ✔ Parallel Operation up to 6 Units

Battery Configuration

• 🔋 120‐500kVA: 48‐52 Nos.

HPX Series (3:3) 500-600-800kVA Online UPS

HPX Series (3:3) Online UPS is a **high-performance, industrial-grade UPS system**, designed for **heavy-duty applications** with **12-Pulse SCR Rectifier** for **rugged operation** and **advanced DSP control for maximum reliability**.

Key Features

• ✔ Most Suitable for All Kinds of Load
• ✔ Advanced DSP Control / IGBT Charger (Optional)
• ✔ 12-Pulse SCR-Based Rectifier for Rugged Operation
• ✔ High Output Power Factor (0.9)
• ✔ N+X Parallel Redundancy up to 6 Units
• ✔ High Efficiency up to 95.5%
• ✔ High MTBF (> 200,000 Hrs.)
• ✔ Intelligent Self-Diagnosing Function
• ✔ 7” Colour Touch Screen Display
• ✔ Multiple Communication: SNMP, RS232, Modbus

Battery Configuration

• 🔋 500 & 600kVA: 40 Batteries
• 🔋 800kVA: 50 Batteries

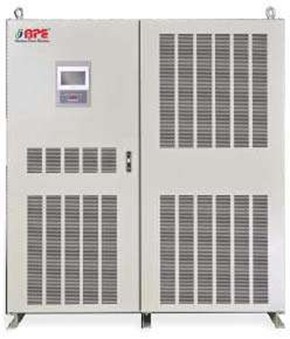

GTC-MW Series (3:3) 300-1000kVA Online UPS

GTC-MW Series (3:3) Online UPS is a **robust and highly reliable UPS system** designed for **industrial load applications**, featuring **high regenerative load handling** and **N+X parallel redundancy up to 8 units**.

Key Features

• ✔ Robust & Reliable Design for Industrial Load Applications
• ✔ DSP Technology Guarantees High Performance
• ✔ Input Power Factor ≥ 0.99
• ✔ Efficiency up to 96.6%, ECO Mode up to 99%
• ✔ Regenerative Load Handling Capability
• ✔ LCD Graphic Display
• ✔ Load-Based Fan Speed Control
• ✔ N+X Parallel Redundancy up to 8 Units
• ✔ Phase Sequence Protection, Still Operates on Mains
• ✔ Flexible DC Voltage Range (40~48 Nos.)
• ✔ Bottom Cable Entry (Standard), Top Cable Entry (Optional)
• ✔ Expandable up to 8MW

Battery Configuration

• 🔋 300‐1000kVA: 40‐48 Nos.
